144V 62F supercapacitor module

Tlhaloso e Khutšoanyane:

GMCC e hlahisitse moloko o mocha oa 144V 62F matla a polokelo ea matla a supercapacitor modules ho latela litlhoko tsa mekhoa e meholo ea polokelo ea matla.Mojule o amohela moralo oa rack o tsitsitseng oa 19 inch, o nang le likhokahano tse ka hare tsa laser ka botlalo ho netefatsa sebopeho se tiileng le se tsitsitseng;Theko e tlase, e bobebe, le moralo oa wiring ke lintlha tsa bohlokoa tsa mojule ona;Ka nako e ts'oanang, basebelisi ba ka khetha ho hlomella module ea comparator passive equalization kapa sistimi ea taolo ea supercapacitor, e fanang ka mesebetsi e joalo ka ho leka-lekanya motlakase, ho lekola mocheso, tlhahlobo ea liphoso, phetisetso ea puisano, jj.
Khoasolla joalo ka PDF

Lintlha tsa Sehlahisoa

Lintlha

Li-tag tsa Sehlahisoa

Tlhaloso ea Sehlahisoa

Sebaka sa kopo Litšobotsi tsa ts'ebetso Parameter e kholo
·Ho tsitsisa ha grid ea motlakase·Pokello e ncha ea matla
·Seporo sa terene
·Crene ea koung		 ·Moetso oa dewiring
· 19 inch boholo ba rack e tloaelehileng
·Sistimi ea taolo ea Super capacitor
·Litheko tse tlase, tse bobebe		 Motlakase: 144 V
·Boemo: 62 F
ESR: ≤16 mΩ
Matla a polokelo: 180 Wh

➢ Phallo ea 144V DC
➢ 130V motlakase
➢ Bokhoni ba 62F
➢ Bophelo ba libaesekele tse 1 milione

➢ Ho leka-lekanya ho se nang letho, tlhahiso ea mocheso
➢ Laser-weldable
➢ Matla a phahameng, Ecology

LIEKETSENG MOTLATSI

MOFUTA M25W-144-0062
E lekantsoeng ka Voltage VR 144 V
Ho phatloha ha Voltage VS1 148.8 V
E Lekanyelitsoe Matla C2 62.5 F
Mamello ea Capacitance3 -0% / +20%
ESR2 ≤16 mΩ
Leakage Hajoale IL4 <12 mA
Boiketsi ba ho itlhatsoa5 <20%
Tlhaloso ea lisele 3V 3000F
E 9 Bokhoni bo boholo ba ho boloka sele e le 'ngoe 3.75 W
Tlhophiso ea module 1 le 48 likhoele
Kamehla IMCC ea Hona Joale(ΔT = 15°C)6 90A
1-motsotsoana o moholo oa IMax oa hajoale7 2.24 kA
Short Current KE8 8.9 kA
Matla a bolokiloeng E9 180 W
Matla a Matla Ed10 5.1 Wh/kg
Tšebeliso ea Matla a Matla Pd11 4.4 kW/kg
Matla a Tšoanang a Impedance PdMax12 9.2 kW/kg
Insulation e mamella sehlopha sa voltage 10000V DC/min ;Leakage current≤ 10mA
Khanyetso ea Insulation 2500VDC, insulation resistance≥500MΩ

Litšobotsi tsa Mocheso

MOFUTA M25W-144-0062
Mocheso oa Mosebetsi -40 ~ 65°C
Mocheso oa polokelo13 -40 ~ 70°C
Thermal Resistance RTh14 0.11 K/W
Thermal Capacitance Cth15 34000 J/K

Litšobotsi tsa Bophelo Bohle

MOFUTA M25W-144-0062
Bophelo ba DC ka Mocheso o Phahameng16 Lihora tse 1500
DC Life ho RT17 10 lilemo
Cycle Life18 1,000,000 lipotoloho
Shelf Life19 4 lilemo

Litlhaloso tsa Tšireletso le Tikoloho

MOFUTA M25W-144-0062
Polokeho RoHS, REACH le UL810A
Ho thothomela IEC60068 2-6
Tšusumetso IEC60068-2-28, 29
Tekanyo ya tshireletso NA

Mekhahlelo ea 'mele

MOFUTA M25W-144-0062
Mmisa M ≤35 lik'hilograma
Litheminale (lieta pele)20 Positive pole ea M8, e nang le torque ea 25-28N.m
Theminale ea matšoao 0.5mm2 Moetapele o lebisa ho
Mokhoa oa ho pholisa phodiso ya tlhaho

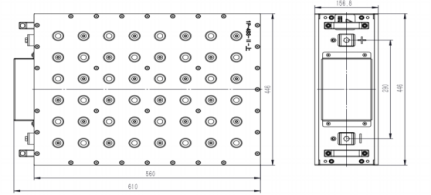

Litekanyo21Bolelele 446 limilimithara
Bophara 610 limilimithara
Bophahamo 156.8 limilimithara
Boemo ba lesoba la mojule Ho kenya mofuta oa li-drawer

Tlhokomelo / Taolo ea Matla a Battery

MOFUTA M25W-144-0062
Sensor ea mocheso oa ka hare NTC RTD (10K)
Sehokelo sa mocheso ketsiso
Ho lemoha matla a betri Letšoao la alamo ea mojule ea overvoltage, lets'oao la node e sa sebetseng, voltage ea alamo ea module: Dc141.6 ~ 146.4v
Tsamaiso ea matla a betri Comparator passive equalization
